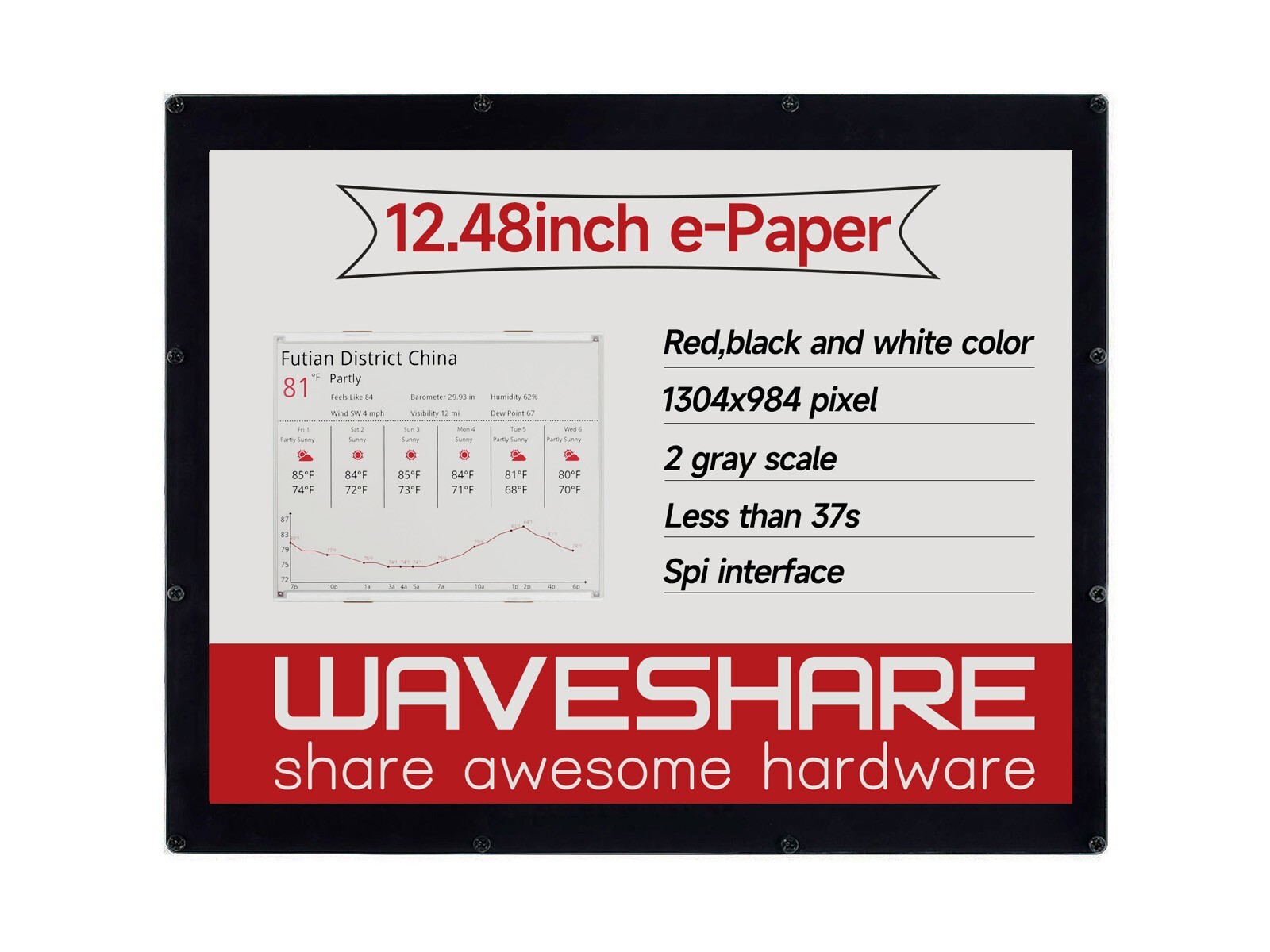

DESCRIPTION 1304×984, 12.48inch E-Ink Display Module, Red/Black/White Three-Color, SPI InterfaceOverview This is an E-Ink display module, 12.48inch, 1304×984 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features - No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Arduino compatible header, allows directly plugging Arduino boards like UNO / UNO PLUS
- ESP32 control header, allows directly plugging control boards like e-Paper ESP32 Driver Board / ESP32-DevKitC
- SPI control interface, for working with STM32 or other MCU host boards
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Acrylic protective case, keeping the screen safe, nice looking
- Comes with development resources and manual (examples for Raspberry style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial; line-height: 1.6; color: rgb(115, 115, 115); font-family: MiSans, "Helvetica Neue", Helvetica, Arial, sans-serif; font-size: 15px;">
- Operating voltage: 3.3V/ 5V
- Interface: 4-wire SPI
- Outline dimension: 280.00 × 229.50mm
- Display size: 252.98 × 190.90mm
- Dot pitch: 0.194 × 0.194
- Resolution: 1304 × 984
- Display color: red, black, white
- Grey scale: 2
- Full refresh time: 37s
- Refresh power: 82.5mW(typ.)
- Standby current: <0.01uA (almost none)
- Viewing angle: >170°
PACKAGE CONTENT Weight:1.785 kg Actual Weight: 1.081 kg - 12.48inch e-Paper Module (B) x1
- 8PIN squid wire x2
- Screwdriver x1
 |
|
