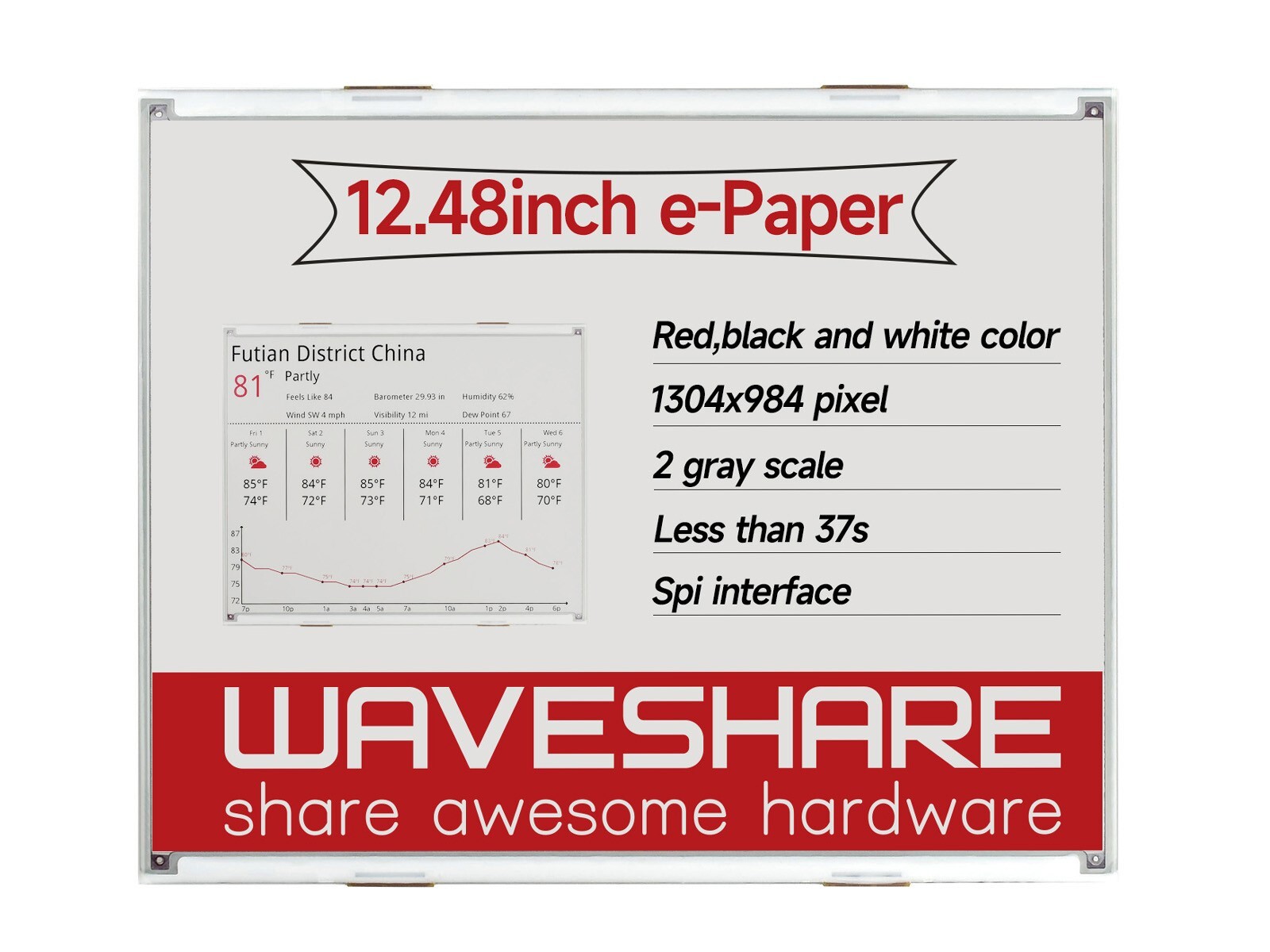

DESCRIPTION 1304×984, 12.48inch E-Ink Raw Display, Red/Black/White Three-Color, SPI Interface, Without PCBOverview This is an E-Ink raw display, 12.48inch, 1304×984 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features - No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (examples for Raspberry style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial; line-height: 1.6; color: rgb(115, 115, 115); font-family: MiSans, "Helvetica Neue", Helvetica, Arial, sans-serif; font-size: 15px;">
- Operating voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 261.40 × 211.00 × 1.20mm
- Display size: 252.98 × 190.90mm
- Dot pitch: 0.194 × 0.194
- Resolution: 1304 × 984
- Display color: red, black, white
- Grey scale: 2
- Full refresh time: 37s
- Refresh power: 82.5mW(typ.)
- Standby current: <0.01uA (almost none)
- Viewing angle: >170°
PACKAGE CONTENT Weight:3 kg Actual Weight: 0.129 kg Note: This is a raw display, for easy testing and comparing, please consider the one with driver board:12.48inch e-Paper Module (B) - 12.48inch e-Paper (B) x1
