DESCRIPTION
4-Ch USB 3.2 Gen1 HUB, Metal Case With Wall-Mount Support, Driver-Free, Plug-And-Play, Multiple Systems Support USB3.2-Gen1-HUB-4U

Extending 4x USB 3.2 Gen1 Ports

Features At A Glance

• 4x extended USB 3.2 Gen1 ports, compatible with USB 3.2 / 2.0 / 1.1
• Onboard 7~36V DC power port to ensure more stable power supply for connected devices
• Up to 2A Max output current for each USB port, effectively preventing USB current backflow
• Multiple LED indicators for monitoring operating status of power supply and USB ports
• Metal case, rugged & durable, with mounting holes for easy installation
• Driver-free, plug-and-play, compatible with Windows, macOS, Linux and Android, etc.

USB 3.2 Gen 1 ORUSB 3.0

They're Totally Equivalent In Fact, Indicating The Transition Of Technical Naming Specification
The Word USB 3.0 On This Page Exactly Means USB 3.2 Gen 1

DATA RATE USED NAME CURRENT NAME 5 Gbps USB 3.0 / USB 3.1 Gen 1 USB 3.2 Gen 1 Specifications STANDARD USB 3.2 Gen1 5Gbps
USB 2.0 480Mbps USB HUB INPUT operating voltage:5V
connector:USB-A USB OUTPUT operating voltage:5V@Imax: 2A (up to 2A Max output current for each USB port when there's enough power input; 5A total peak current for 4-ch USB ports )
connector:USB-A EXTERNAL POWER INPUT power supply voltage:DC 7~36V
connector:screw terminal, DC jack OPERATING ENVIRONMENT 0℃ ~ 75℃ OS SUPPORT Windows, macOS, Linux and Android, etc.
5Gbps Ultra-Fast Transmission

Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission

Connecting To Various USB Devices

1 To 4-Ch USB 3.2 Gen 1 High-Speed Ports For Connecting More Peripherals

Multiple OS Support

Compatible With Windows, MacOS, Linux And Android Systems

Application Environments

1 in 4 out

small body for desktop use

wall-mount support

Interface Introduction Outline Dimensions Resources & Services

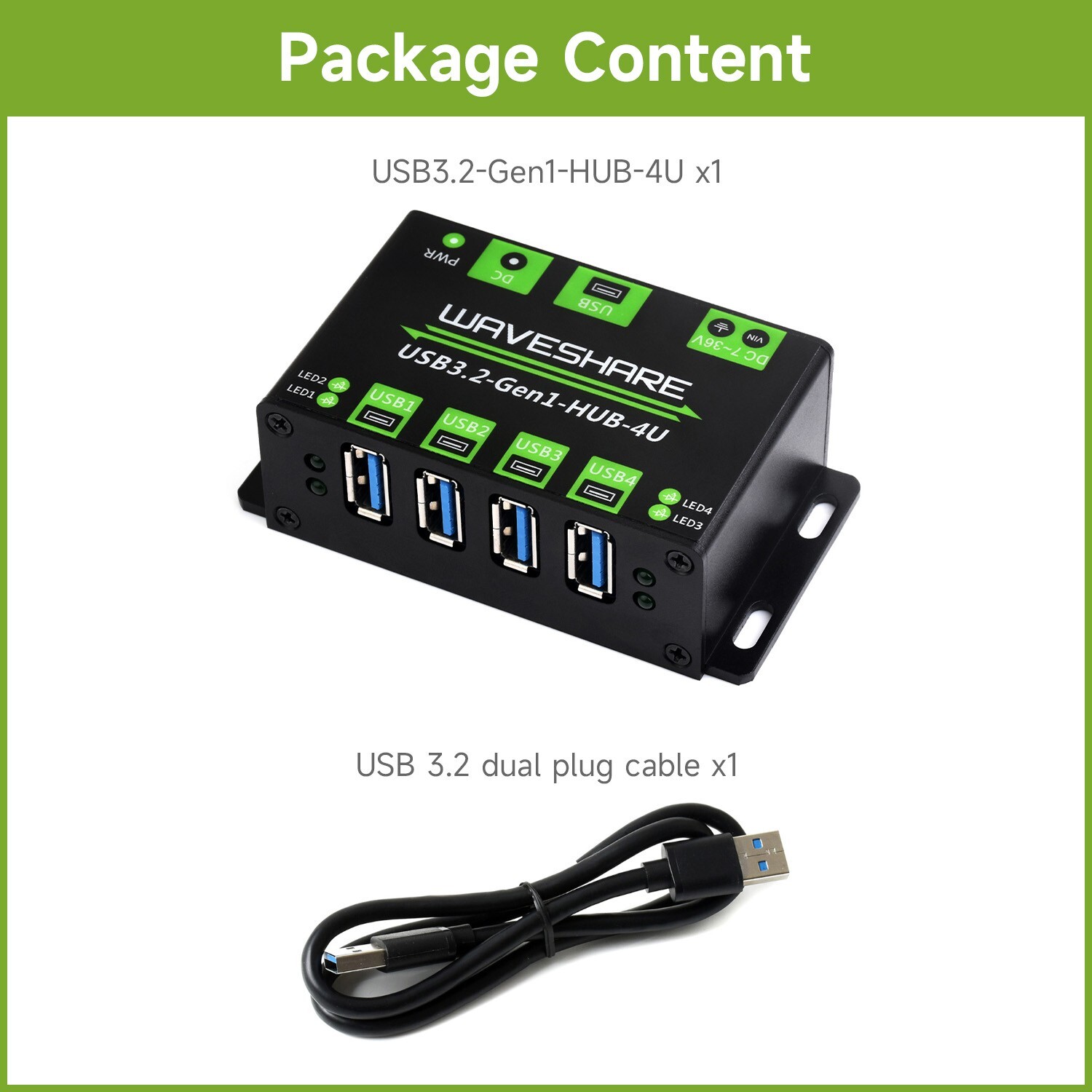

PACKAGE CONTENT

Weight:0.04 kg

1. USB3.2-Gen1-HUB-4U x1
2. USB 3.2 dual plug cable x1

1 2
