Description

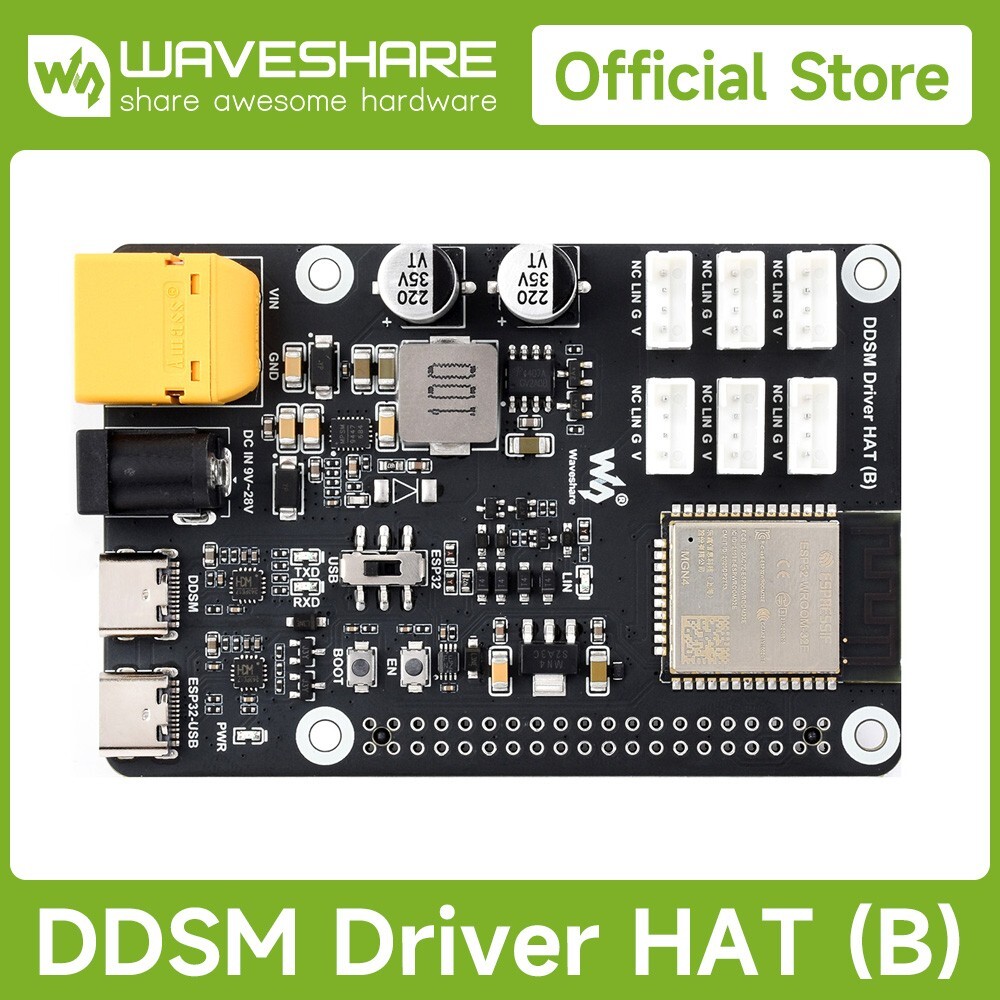

Direct Drive Servo Motor Driver Board (B), Integrates ESP32 and Control Circuit, 2.4G WiFi Support, Suitable for DDSM400 Hub Motor, ESP Now SupportDDSM400 Hub Motor Driver Board

Designed for DDSM400 hub motor, Integrates ESP32 and control circuit

Supports controlling 6-ch DDSM400 hub motors at the same time via ESP32 UART or Type-C USB port, providing hub motor SDK for Secondary Development

Features

• Suitable forDDSM400hub motor, onboard 6-ch DDSM400 motor interfaces
• Based on ESP32-WROOM-32 module, supports multiple wired and wireless communication modes, supports JSON command interaction for easier control
• Provides DDSM400 hub motor control demo and SDK, easy to use
• Integrated WEB application for controlling and setting the DDSM400 hub motors, more convenient for debugging
• Supports controlling the hub motors directly via onboard Type-C port
• Supports connecting to Raspberry Pi, powering the Pi via integrated 5V buck regulator circuit and communicating through GPIO UART interface, neat cable management

SpecificationsController ModuleESP32Power supply portXT60, 5.5*2.5mm DC power jackPower supply9V ~ 28Vcommunication INTERFACEType-C × 2, UARTWireless communication2.4G WiFiMounting hole DIAMETER3 mmMounting hole spacing58 × 49 mmPCB size85 × 57 mm
Application Examples

• Suitable for driving DDSM400 hub motors and obtaining response information
• The host controller can control the hub motors by sending JSON commands and obtain response information in JSON format, which is easy to use and more convenient for secondary development
• Multiple communication methods for easy integration into 6 × 6 or 4 × 4 mobile robot projects

Driving 6 × 6 mobile robot

Driving 4 × 4 mobile robot

for reference only, please check the Package Content section for the detailed part list

supports multiple hub motors control

Controlling 6-ch DDSM400 hub motors

Controlling 4-ch DDSM400 hub motors

* Due to the high power of the hub motors, it is necessary to consider whether the power supply solution is enough when using too many hub motors

Wired control Mode via USB cable

• Using 115200 baudrate to communicate with ESP32 of the driver board
• Supports sending commands in JSON format to set up and control the hub motors
• Obtains response information in JSON format
• Provides Python demo for controlling the hub motors on the host controller

• When connecting to the Type-C port with DDSM mark and switching to USB control, you can directly communicate with the hub motors. Suitable for users who can independently develop the driver program.

Wireless control Mode via Web application

• The DDSM driver HAT will automatically establish a hotspot after powering on
• Allows users to connect and control the driver HAT via mobile phones, Tablets and PCs with the cross-platform Web Application
• Supports sending the JSON commands to the driver HAT via Web Application

Suitable For Raspberry Pi 5 / 4B

Supports Powering The Pi And Communicating Through GPIO UART Interface, Neat Cable Management

ESP32 Controller, with Rich Resources
Easier for Secondary Development

Built-In WiFi And Bluetooth, Supports ESP-NOW Communication For Remote Control And hub motor Debugging

What's On Board

1. ESP32 controller
2. LIN single bus communication circuit
3. UART control switch
4. Reset button
5. BOOT button
   for entering downloading mode manually
6. Raspberry Pi 40PIN header

7. ESP32 Type-C port
8. Hub motor Type-C port
9. 5.5x2.5 DC power jack
10. XT60 power supply connector
11. LIN hub motor headers

outline dimensionsResources & Services
Package Content

Weight:0.087 kg

1. DDSM Driver HAT (B) x1
2. 2×20 pin header x1
3. USB Type-A to Type-C cable ×1
4. Screws pack ×1
