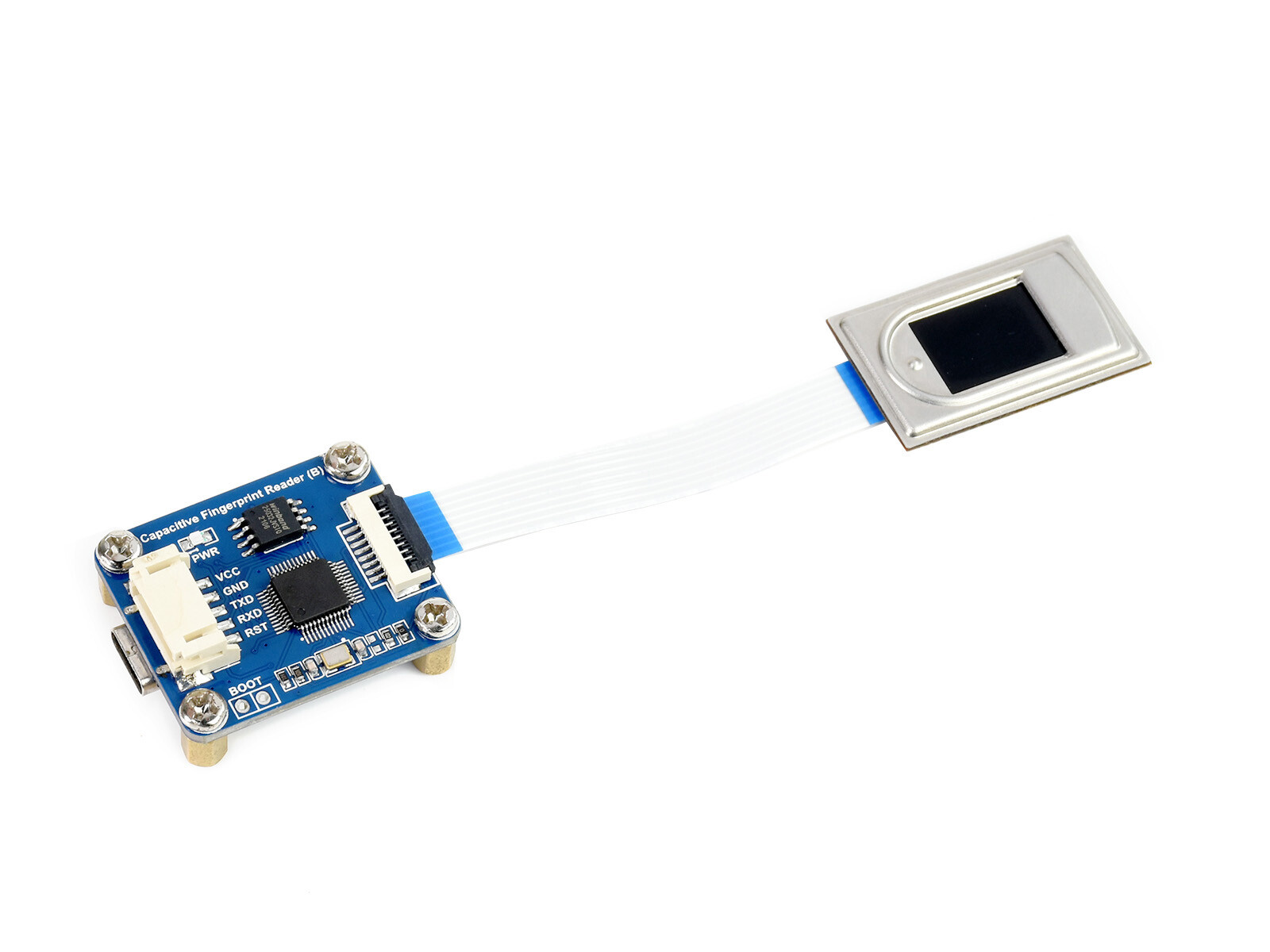

DESCRIPTIONHigh Precision Capacitive Fingerprint Reader (B), UART/USB Dual PortsCapacitive Fingerprint Reader (B)

Precise Fingerprint Identification | UART/USB Dual Ports

Product Features

TheCapacitive Fingerprint Reader (B)is a fast and stable capacitive fingerprint module specialized for secondary development, suits integration applications.

By incorporating high performance Cortex core processor, high security commercial fingerprint algorithm, and advanced semiconductor fingerprint sensor, this module is designed as a intelligent integration module with functions including fingerprint enrolling, image processing, template generating and storing, fingerprint matching and searching, etc.

• Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure/calculation
• Commercial fingerprinting algorithm, stable performance, fast identification
• Sensitive detection, just touch the collecting window lightly, without pressing
• Allows to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
• Dual communication, UART or USB
• Comes with rich development resources (related command documents, tools, and examples for Raspberry (capacitive)Module dimension34 × 28.5mmSensor dimension33.4 × 20.4mmImageDPI 508Image resolution208× 288Greyscale256 (8-bit)Sensing area14.6× 10.6mmFingerprint capacity3000Security level1-5 configurable, 3 by default
  the higher value, the lower FAR (False Acceptance Rate), yet the higher FRR (False Rejection Rate)Encryption key64-bit encryptionImage collecting rate20fpsMatching time0.5sDynamic current<40mAOperating voltage3.3-5VCommunication portUART or USBESDSD IEC 61000-4-2 LEVEL 4 positive/negative 15KV air dischargeBaudrateconfigurable: 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600bps
  115200bps by defaultApplication Examples

  Fingerprint Lock, Fingerprint Safe Deposit Box, Access Control System, Clock In And Out...

  Outline DimensionsResources & class="subBlock alignl" style="font-size: 0.6em; box-sizing: border-box; margin: 1em 0px; text-align: left; padding: 0px; line-height: 1.6;">* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

  PACKAGE CONTENT

  Weight:0.017 kg

  1. Capacitive Fingerprint Reader (B) x1
  2. PH2.0 5PIN wire x1
  PACKAGE CONTENT12
