Key Applications • Centralized/Cloud Radio Access
Network (C-RAN)
• Universal Customer Premise
Equipment (uCPE)
• Software Defined WAN (SD-WAN)
• Network Function Virtualization
(NFV) Key Features 1. Intel® Xeon® D-2183IT Processor,
16-Core, 32 Threads, 2.2 GHz, 100W 2. Up to 512GB ECC LRDIMM,
up to 256GB reg. ECC RDIMM

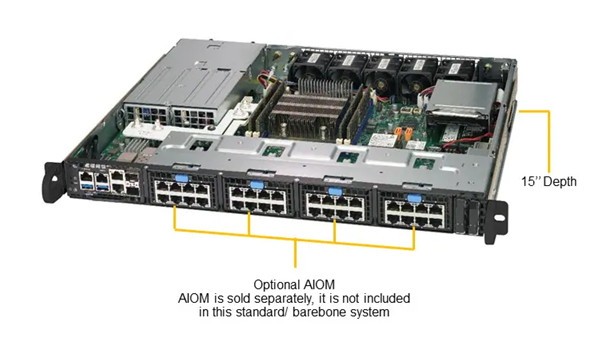

DDR4-2400Mz; in 4 DIMM slots 3. 4 PCI-E 3.0 x8 slots for optional AIOM 4. 2x 2.5" drive bays (one drive space
shares with M.2), 2 E1.S
(40°C ambient temperature only) 5. M.2 Slots:
2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA)
(space shared with one 2.5" drive bay),
1 B-Key 3042 (PCI-E 3.0 x4/SATA)
1 E-Key 2230 (PCI-E 3.0 x2) 6. 2x 10GbE (shared with IPMI), 2x 10G
SFP+, 1 Ethernet Management port 7. 2 USB 3.0, 1 VGA,
1 COM via RJ45 or Micro USB 8. 400W Redundant Platinum Level
Power SuppliesDimensions and Weight
Height

• 1.7" (43mm)

Width

• 17.2" (437mm)

Depth

• 15" (381mm)

Package

• 8" (H) x 25" (W) x 27" (D)

Weight

• Gross Weight: 26.9 lbs (12.2 kg)
• Net Weight: 15.9 lbs (7.21 kg)
